A temperature range of up to 200°C and a high heating output of 22 W/cm² ensure fast and uniform heating. The integrated pixel structure with a heating rate of up to 10 K/s enables dynamic adjustment of temperature distribution in real time.
Thanks to a non-stick coating or optional non-stick film, the surface remains process-safe and low-maintenance. The modules are easily replaceable and can be flexibly combined, allowing heating surfaces of up to 800 x 800 mm to be realized – for maximum scalability and adaptability in a wide range of applications.
Product data:

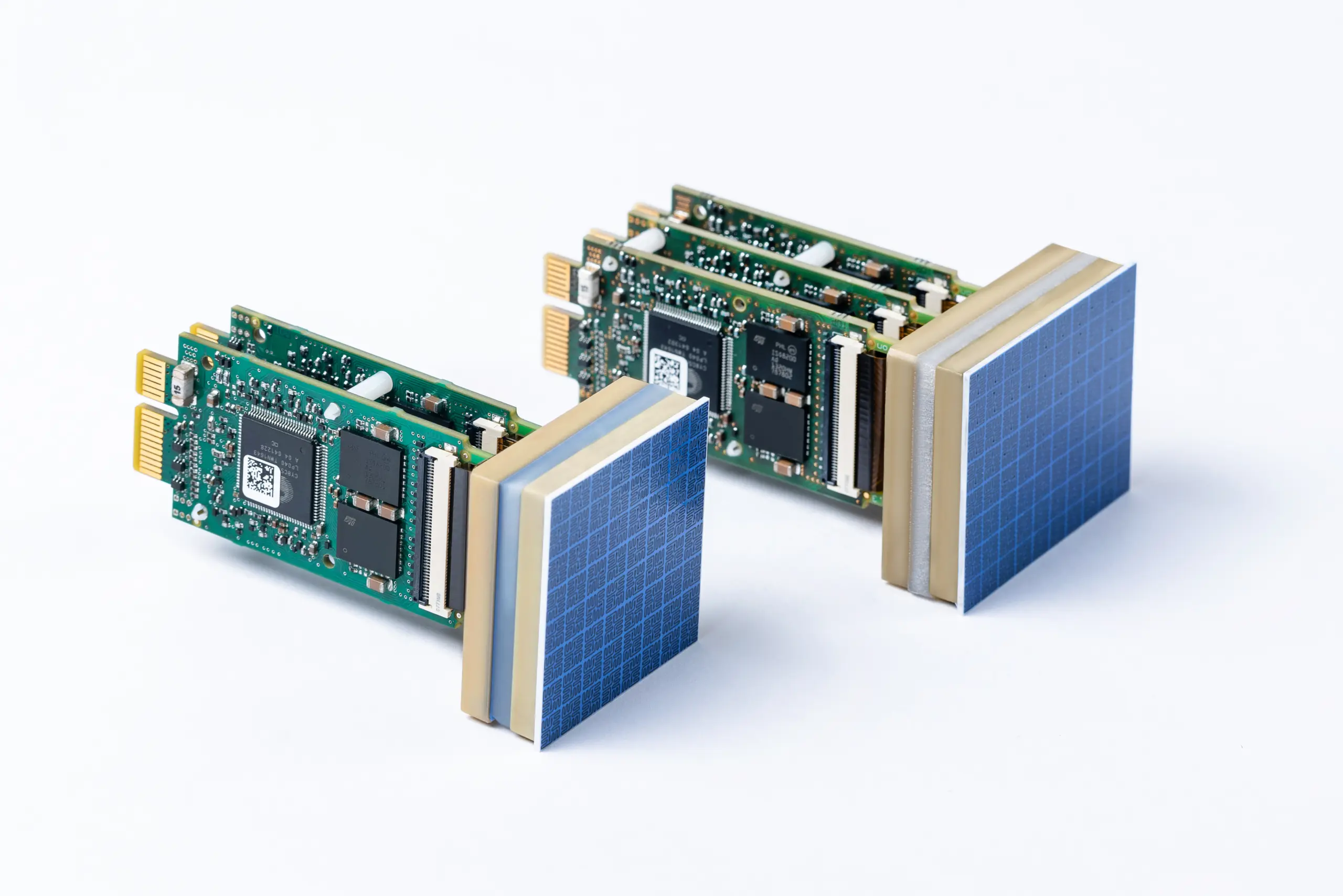

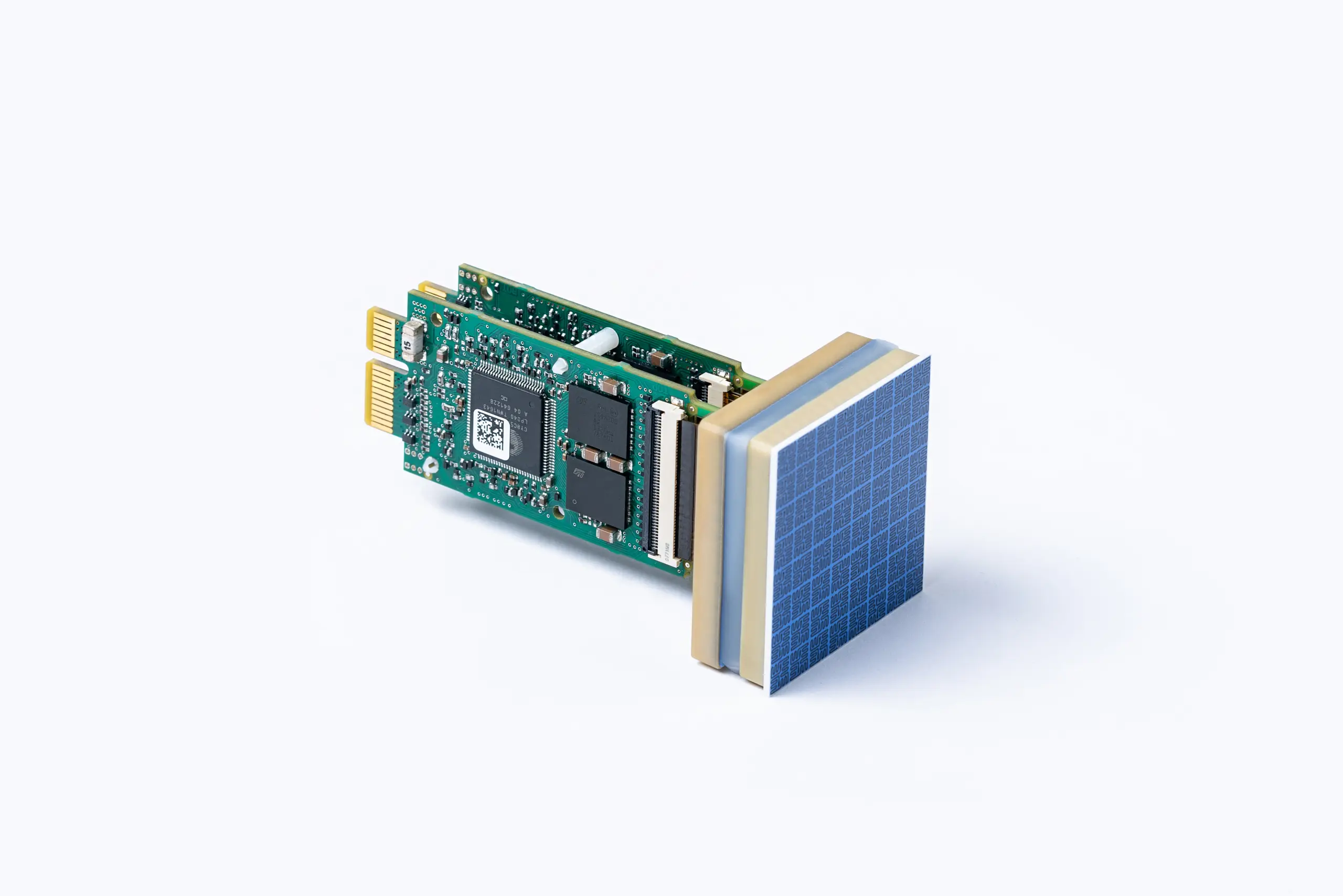

- Main component of a matrix heater
- Heating surface size: 40 mm x 40 mm or 40 mm x 50 mm
- 64 or 80 individually controlled heating pixels, each 5 mm x 5 mm
- Temperature range: up to 200°C
- Heating output: 22 W/cm²
- Non-stick coating of the heating surface or non-stick film available
- Easy replaceability
- Heating rate: 10 K/s
- By combining matrix heating modules, heating surfaces of up to 800 mm x 800 mm can be realized
