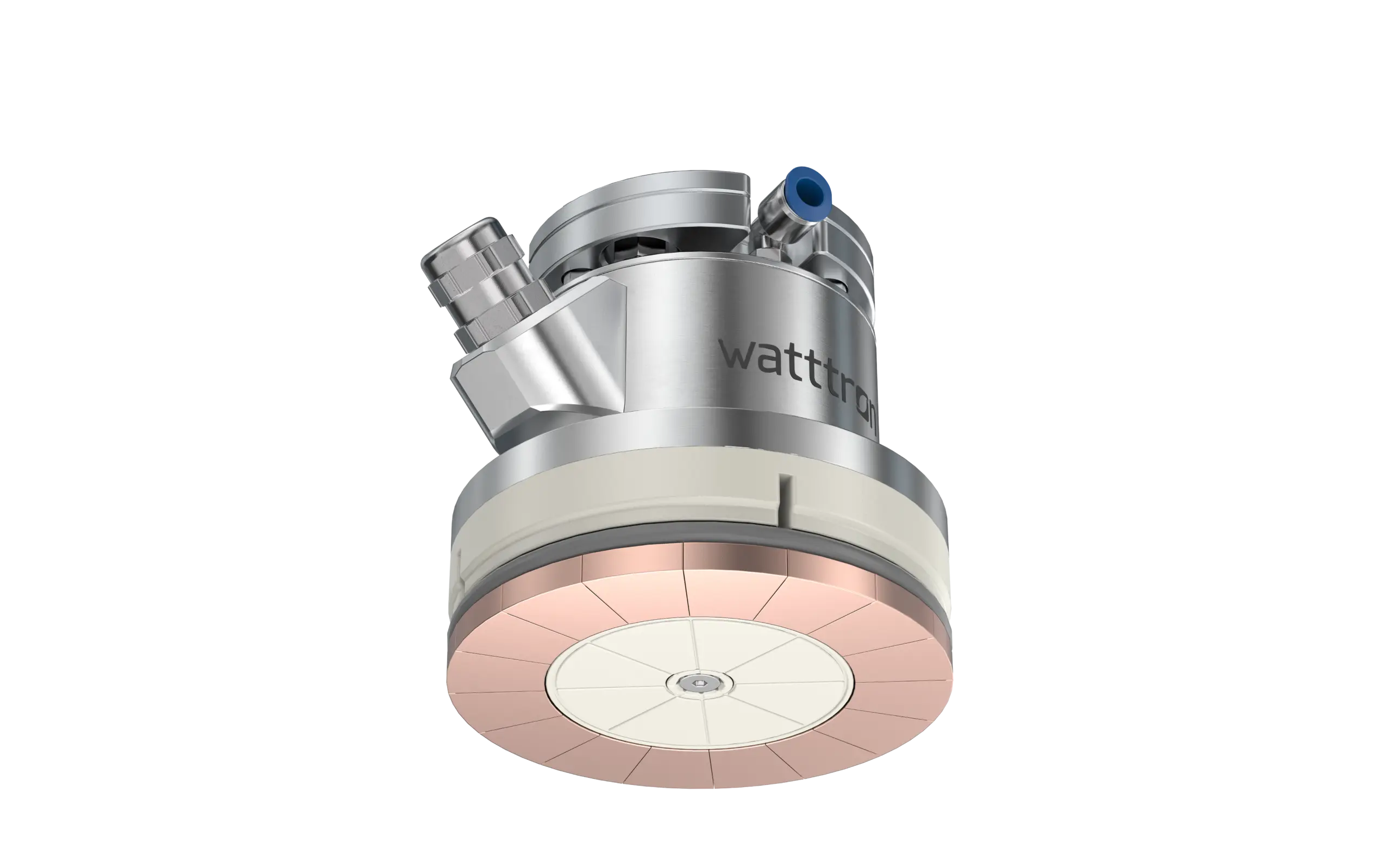

The elastically mounted sealing segments allow perfect sealing results even on uneven sealing surfaces.
Available format ranges/sealing diameters:
SRHF-0062: outer diameter of sealing surface: 62 mm; inner diameter of sealing surface: 29 mm
SRHF-0095: outer diameter of sealing surface: 95 mm; inner diameter of sealing surface: 58 mm
Sealing elements
16 individual, flexibly mounted and individually temperature-controlled sealing elements (compensation of unevenness up to 0.2 mm)
Temperature Range:
up to 250 °C
Typ. heating rate:
approx. 5K/s
Further Information:
- Sealing profile shape: flat
- Ideal for sealing aluminum lids on glass containers/jars
- Vacuum suction of the lid on the sealing head possible
